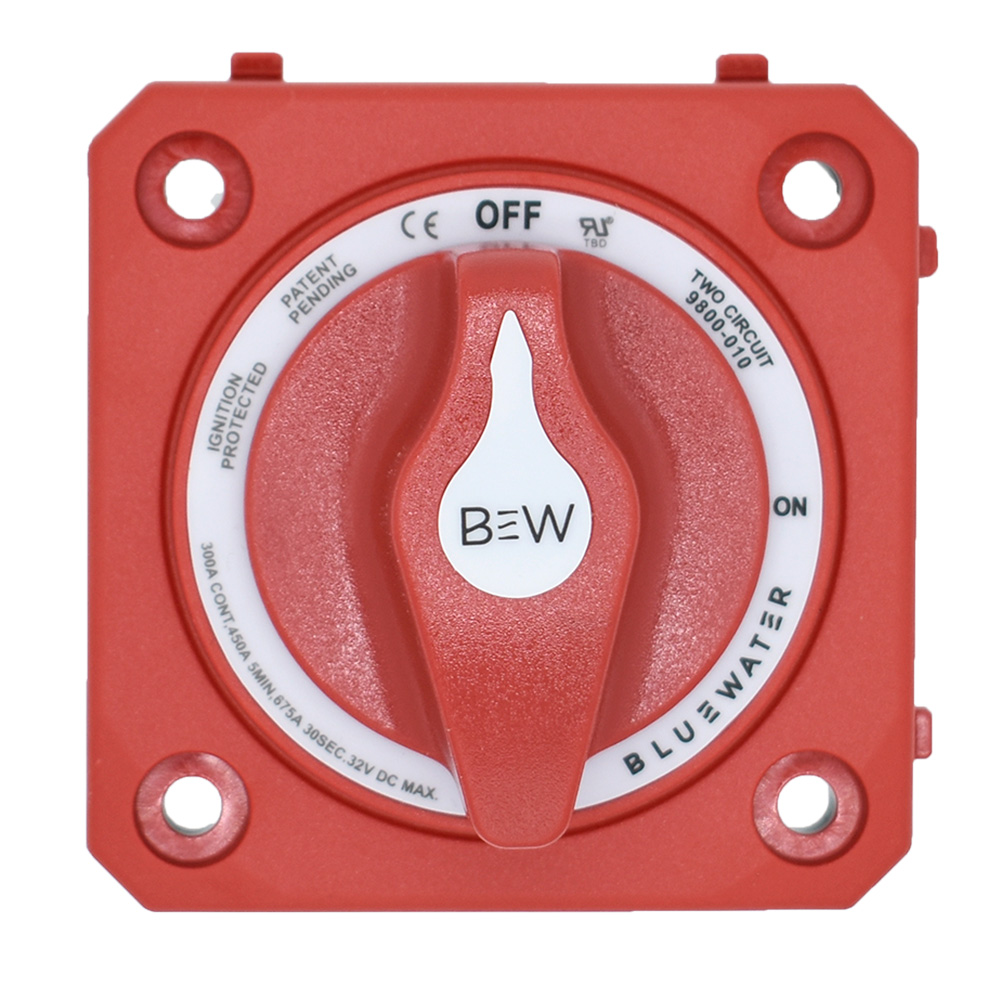

Bluewater On/Off 4 Post Dual Circuit Battery Switch with O Base - Panel Mount - Red
Bluewater
On/Off 4 Post Dual Circuit Battery Switch without Base - Panel Mount - Red This dual circuit battery switch allows you to control two isolated circuits simultaneously with a single action
$42.00
On/Off 4 Post Dual Circuit Battery Switch without Base - Panel Mount - Red This dual circuit battery switch allows you to control two isolated circuits simultaneously with a single action. It’s ideal for applications that require independent power routing, such as separating a house battery and an engine battery, without risk of cross-connection. Ignition-protected and safe for use aboard gasoline-powered boats, this dual circuit battery switch is also well-suited for marine and RV systems. The versatile case design supports surface, front panel, or rear panel mounting. For maximum reliability, it features 3/8″-16 tin-plated copper studs that provide high conductivity and corrosion resistance, accepting both 3/8″ and M10 ring terminals. The 7/8″ stud length allows for secure connection of multiple cable terminals. Durable by design, the switch is constructed from marine-grade, non-corrosive metals and housed in reinforced polycarbonate. Tactile knob textures enable position recognition by feel alone, and the unit includes both international ON/OFF legends and an ICON label set for clear circuit identification. Specifications: Continuous Rating: 300 Amps DC Intermittent Rating: 450 Amps DC (5 min) Cranking Rating: 675 Amps DC (30 sec) Max Voltage: 32VDC Cable Size: 4/0 AWG
- Availability: In Stock
- Model: 111031
- SKU: CWR-111031
- Brand: Bluewater
